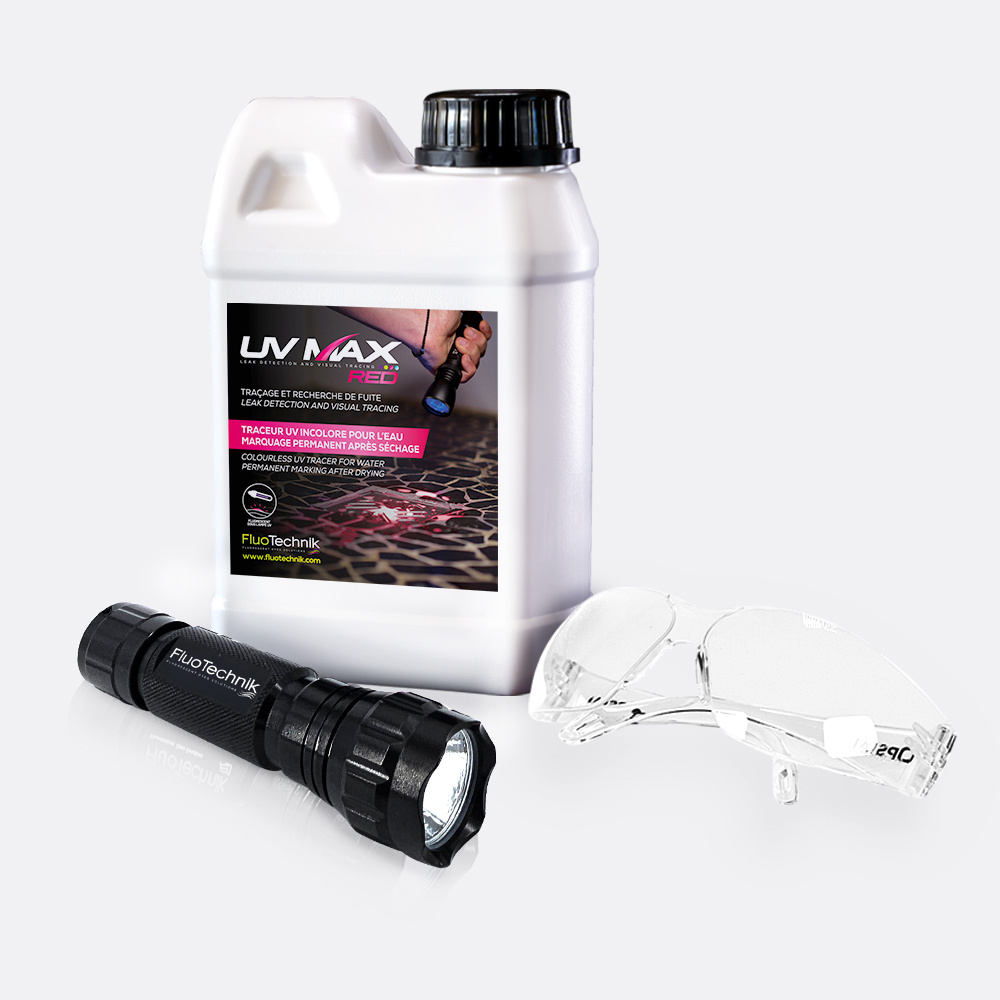

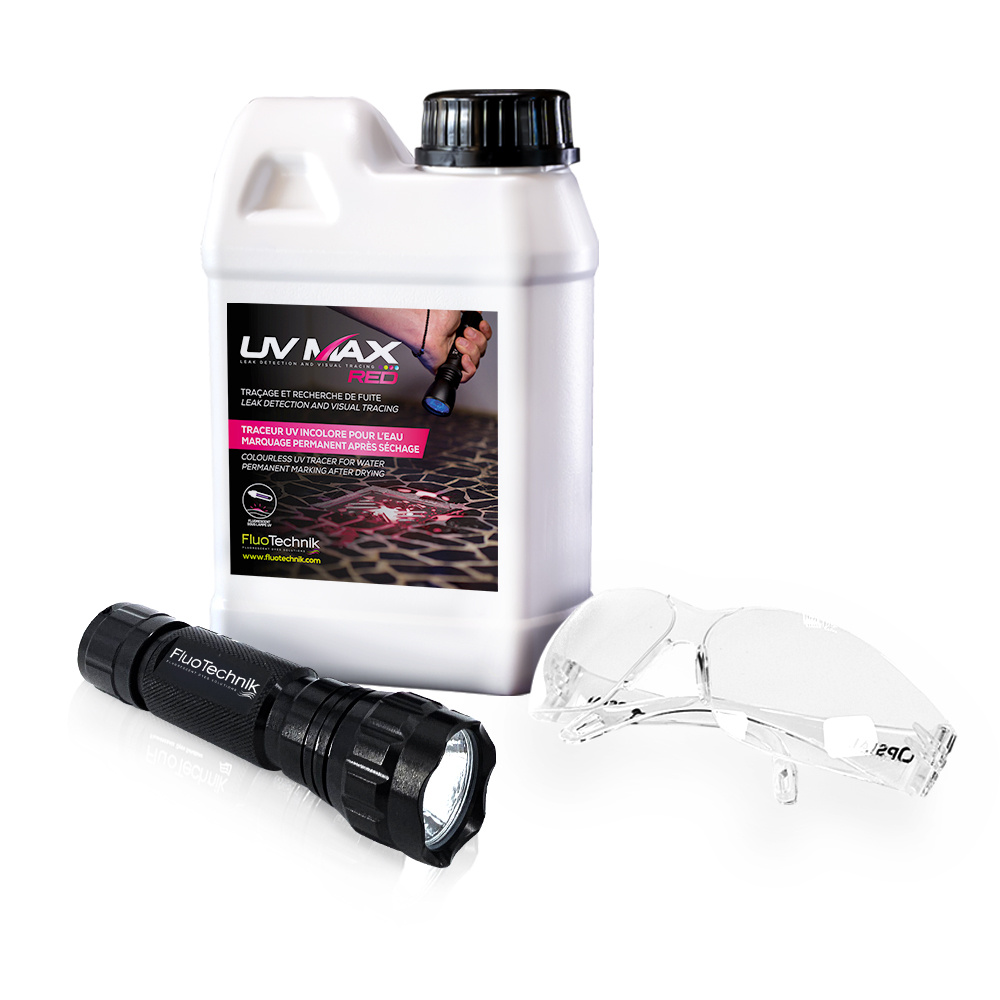

Discover the complete UV MAX Red kit, designed for professionals and individuals. Made up of only the essentials, this kit combines the UV MAX Red fluorescent colorless tracers and a UV lamp, giving you everything you need for simple, fast, and efficient leak detection.
Discover the complete UV Max Red kit, ideal for craftsmen and individuals. This kit is perfect for plumbing, piping, real estate inspectors, leak detection specialists, pool experts, building professionals, and hydrogeologists. Made of UV Max Red tracing dyes and a UV lamp, this kit provides quick, simple, and efficient leak detection. Totally colorless and visible only under UV light, UV Max Red offers powerful luminescent contrast without leaving marks on delicate surfaces.

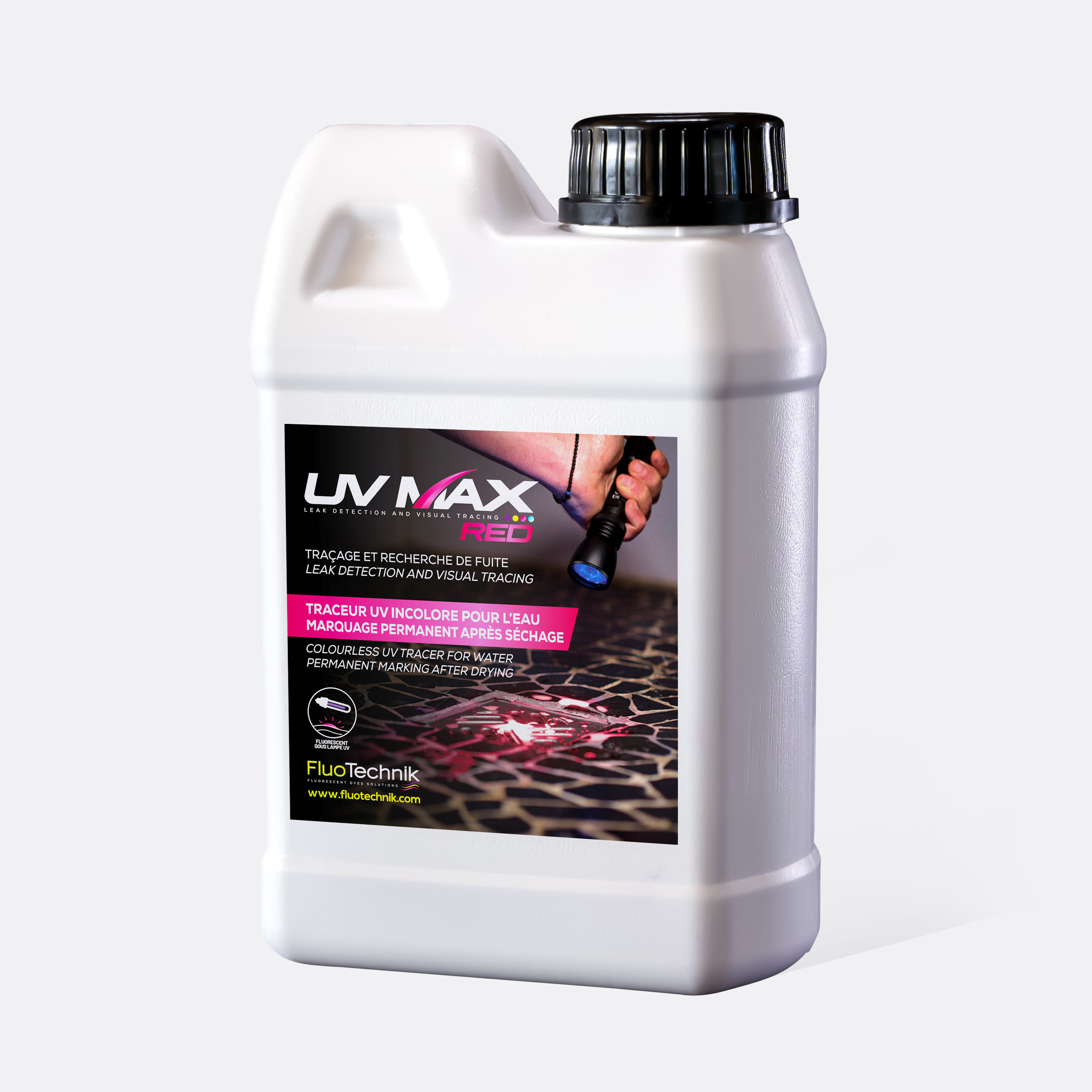

Leak detection tracer and liquid tightness test – colorless fluorescent – UV MAX REDD
Completely colorless, UV MAX RED leaves no marks on any type of surface. It prevents any risk of stains or marks on delicate and/or absorbent materials: natural stone, façade coatings, tile joints… UV MAX RED is also a marker visible only under UV after drying, for several weeks. This allows long-term tracing operations without leaving marks on any surface.
UV MAX RED is an ultra-concentrated tracer! A dosage between 5ml and 10ml/L is sufficient in most situations. With UV lamps from the FLUOTECHNIK range, UV MAX RED will provide a powerful, highly visible luminescent contrast, making it an excellent leak detector, micro leak, and capillary rise revealer. UV MAX RED is used in combination with UV MAX BLUE for multi-tracing.
APPLICATIONSThe colorless UV MAX RED tracer, soluble in water and visible only under UV light, red in color, designed specifically for:
• Wastewater, rainwater, and industrial flow testing• Agricultural spreading simulation• Search for hydraulic connections between natural environment and building• Search for water infiltration on floors, interior walls• Visual detection and testing of buried pipe connections• Chemical product dispersion simulation• Floor heating leak detection, glycol cooling network• Storage tank leak detection• Industrial tightness testing (IP standard validation test)
KEY BENEFITS • Totalement incolore ne laisse aucune trace, très bonne stabilité chimique• Completely colorless, leaves no trace, very good chemical stability• Visible under UV lamp after drying (several weeks)• Fluorescent red under UV 365nm lamp from the Fluotechnik range• Very high diagnostic accuracy due to its high fluorescence yield• Very good solubility, easy dispersion• Low dosage, cost-effective
DOSAGE• 2ml/L to 10ml/L

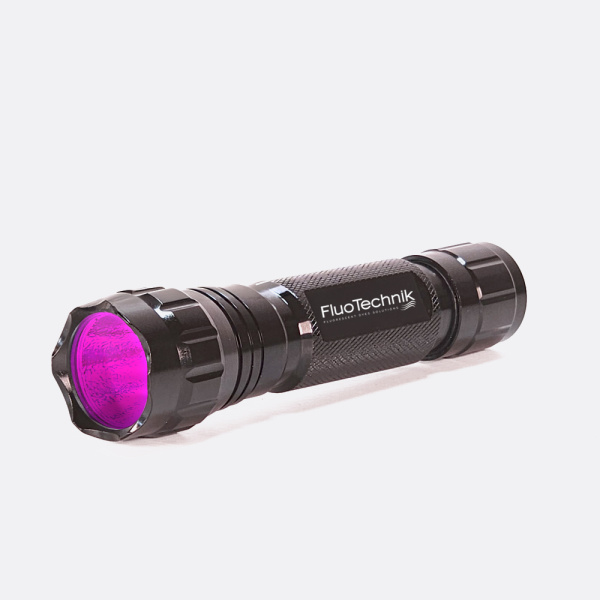

UV Lamp Kit - TORCH - High Precision - 365nm
Lightweight (90g), durable, and easy to handle, this 365nm UV torch with a lighting range of about 2 to 3m is ideal for precision diagnostics in the building and industrial sectors.
ADVANTAGES
• Operates on rechargeable Li-ion battery, with about 4 to 6 hours of autonomy• Sealing level: IPX4• The kit includes the 365nm UV lamp, protective goggles, charger, and battery• Works with DETECT + YELLOW, PURPLE, and colorless DETECT + WHITE tracers, UV MAX BLUE, UV MAX YELLOW• Compatible with DETECT + UV OIL range• Compatible with fluorescein• Compact and light enough to fit in your Pocket
PRODUCT SPECIFICATIONS
• Main materials: 6061 aluminum alloy• Surface treatment: Green oxidation• Color: Black• Number of LEDs: 1• Ultraviolet light wavelength: 365nm• Battery: 1*18650 rechargeable Li-ion battery• Service time: 4-6 hours• Voltage: 4.5V• Lens material: Transparent ABS plastic• Product size: L (133mm), Diameter (head diameter: 30mm, tail diameter: 24mm)• Weight: 90g• Flashlight + Battery + Charger + Box: 250g• Sealing level: IPX4• Packaging: Kraft paper box
APPLICATION AREAS
• Medical devices• Sterilization• Ink drying• Detection of metal cracks and fractures• Photocatalytic light source• Control and counting equipment• Anti-counterfeit industry• Medical measurements and biostatistical safety tests• Hydraulic leak detection• Scorpion capture and bill testing under amber light• Animal urine detection
UV LAMP SOLD WITH 1 PAIR OF PROTECTIVE GLASSES
