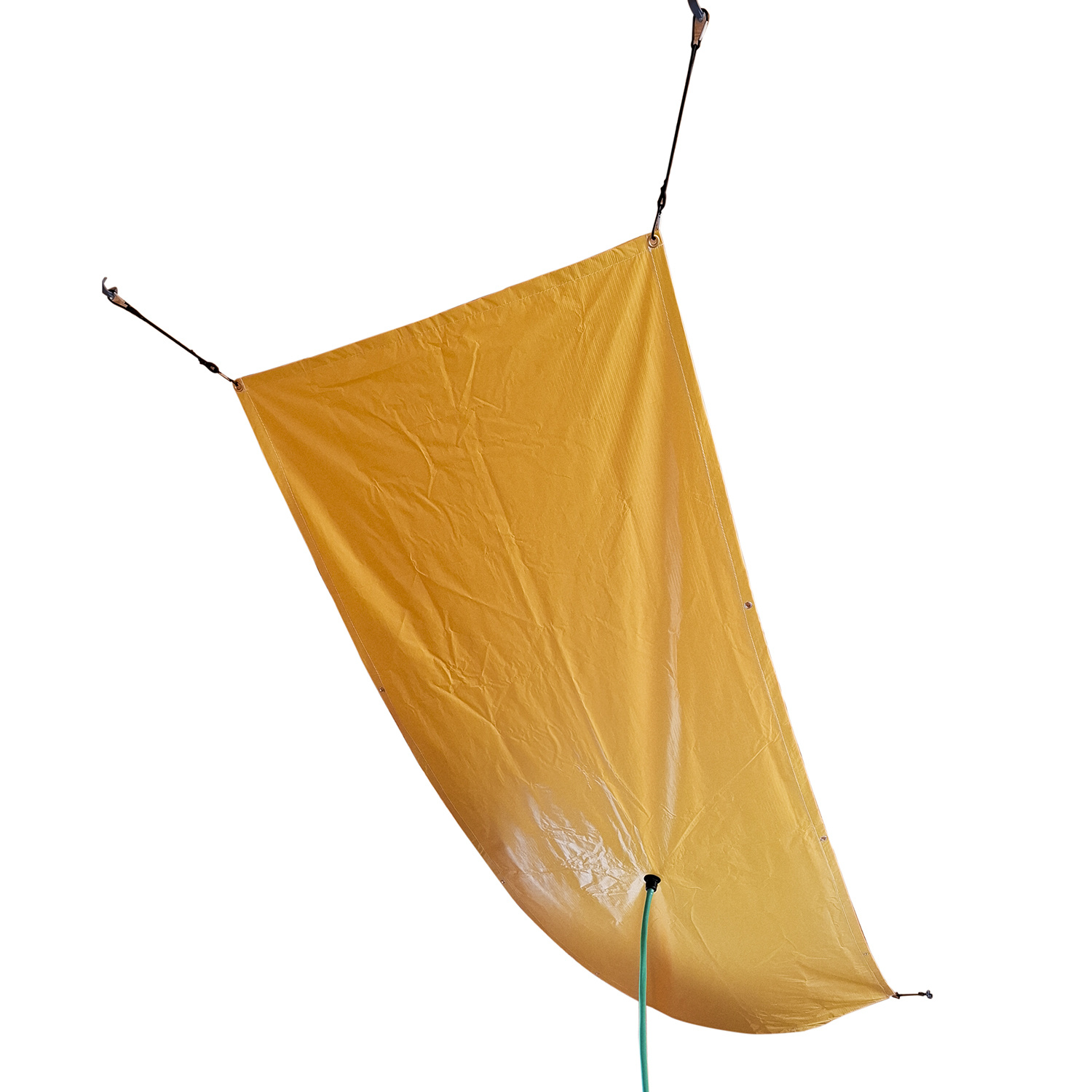

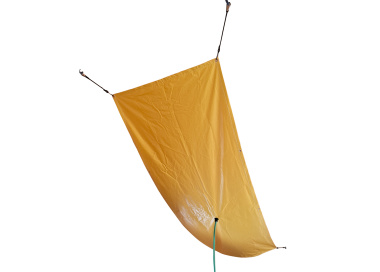

1x3 m tarp for linear leaks (roof ridge, industrial premises). Kit with 5 m hose and bungees. Durable, lightweight, easy setup. Professional solution for emergency interventions.
The 1 m x 3 m water diversion tarp is specifically designed for linear water leaks or distributed flows, such as those encountered along a roof ridge, expansion joint, or a defective overhead pipe. Its length allows it to cover a large area while evenly capturing water to channel it toward a secure drainage point via a 5-meter hose included. This solution is particularly recommended for emergency interventions on roofs, attics, false ceilings, technical rooms, or warehouses.
Made from reinforced flexible PVC with high-tenacity Trevira polyester fabric, it withstands extreme conditions, including moisture, frost, heat, friction, and mechanical stress.
Its elongated shape is the ideal solution for situations where a leak is not concentrated at a single point but spreads along a line: roof ridge, overhead pipe, junction between two roof sections, or leaking ventilation system. It allows for smooth water channeling to a collection point, preventing stagnation or overflow, even over several meters.
Base Fabric 100% High-Tenacity Trevira PES 500D x 500D DIN EN ISO 2060
Coating PVC
Total Weight 340 g/m² DIN EN ISO 2286-2
Tensile Strength (Warp) 800 N / 5 cm DIN 53354
Tensile Strength (Weft) 550 N / 5 cm DIN 53354
Tear Resistance (Weft) 140 N DIN 53363
Adhesion Min. 80 N / 5 cm DIN 53357
Operating Temperature -30°C to +70°C DIN 53361
The spectrum of users is broad, reflecting the product’s versatility:
Plumbers & heating engineers
Leak diagnostics on sanitary installations and internal networks.
Roofers & waterproofing specialists
Detection of weak points on membranes and flat roofs.
Leak detection experts
Precision tools for interventions in private homes, public facilities, and businesses.
Building inspectors & damage assessors
Inspections during renovations or damage assessments.
Hydrology engineers & research offices
Monitoring of dispersion or infiltration.
Industrial maintenance technicians
Tests on cooling circuits, tanks, and process equipment.
Municipal technical services
Management of stormwater networks, retention basins, or underground infrastructures.
Perfect for elongated leak lines
Includes bungee cords and reinforced grommets
Easy transport and setup
Industrial buildings, hospitals, logistics warehouses, schools, etc.
Ideal for humid or variable conditions

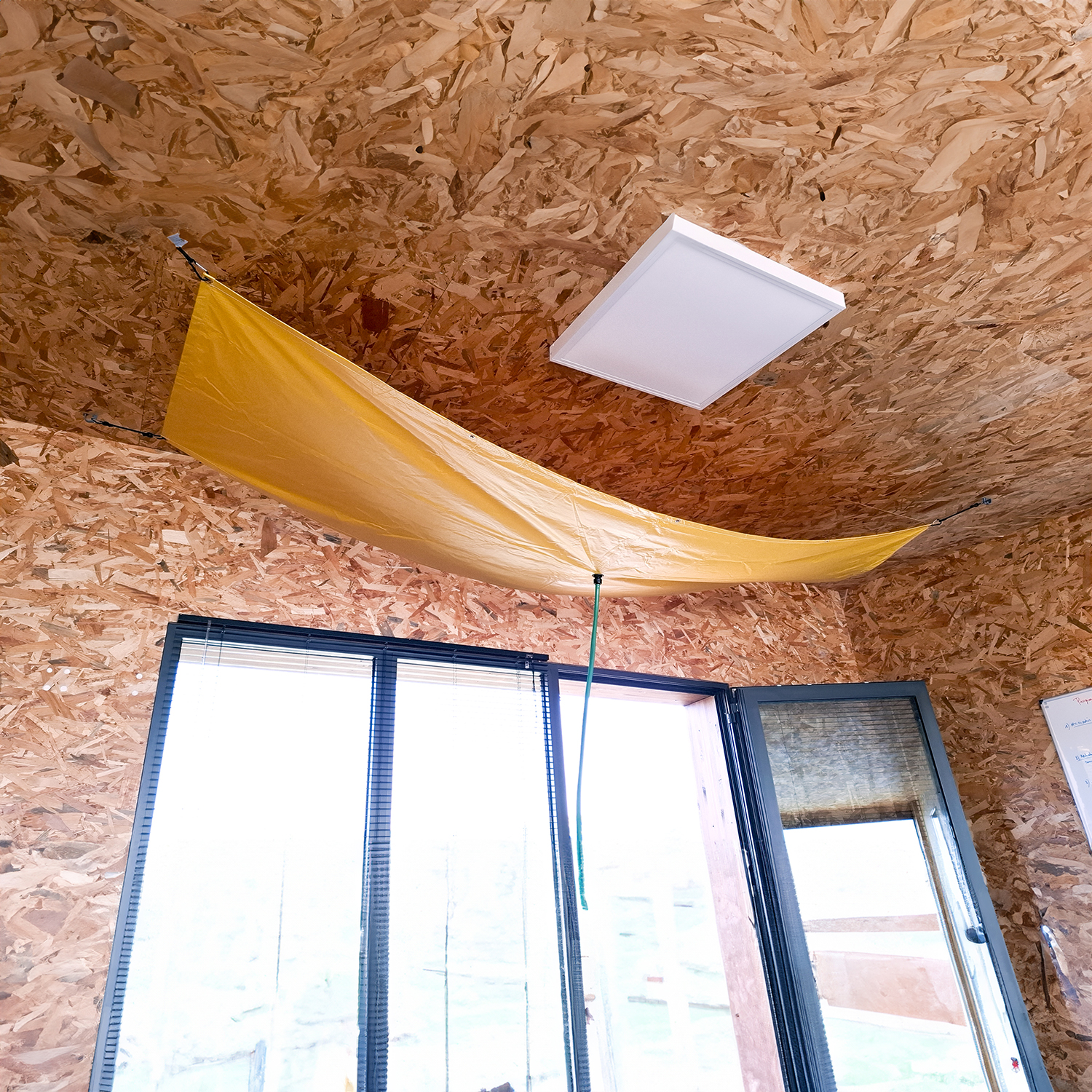

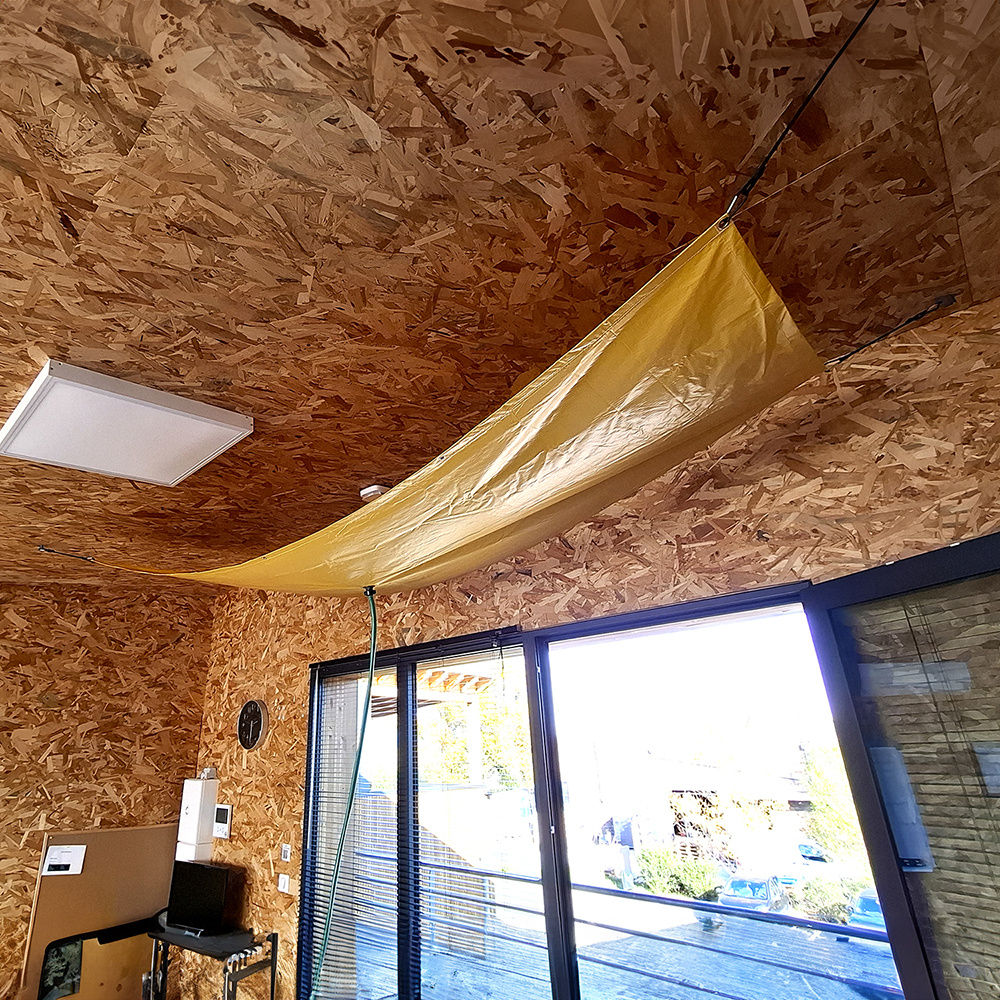

The leak diversion tarp is designed to channel water leaks (from ceilings, roofs, or pipes) toward a safe outlet. It protects sensitive areas, equipment, or stock by redirecting the flow to a collection or drainage point using a flexible hose.
Yes, the kit contains everything needed for immediate installation:
The tarp can be attached to:
Yes, the included 5m hose is flexible, adjustable, and can be oriented to adapt the drainage direction according to your needs (tank, container, floor drainage, etc.).
Yes, the tarp is weather-resistant and can withstand temperatures from -30°C to +70°C, making it suitable for temporary outdoor use in emergency leak situations.
Absolutely. The tarp is designed for repeated use. Thanks to its reinforced PVC structure and high-tenacity Trevira fabric, it offers great durability, even in demanding environments.
The tarp weighs approximately 340 g/m², making it lightweight, robust, and easy to handle, even at height.
Yes. For localized or continuous leaks, the tarp effectively directs the flow to the hose without overflow. For larger volumes, you can combine multiple tarps or opt for a larger model.
Yes, it is recommended to rinse it with clean water after use, especially if it has been exposed to contaminated water. The PVC is easy to clean and dries quickly.
Yes. This tarp is used in:
